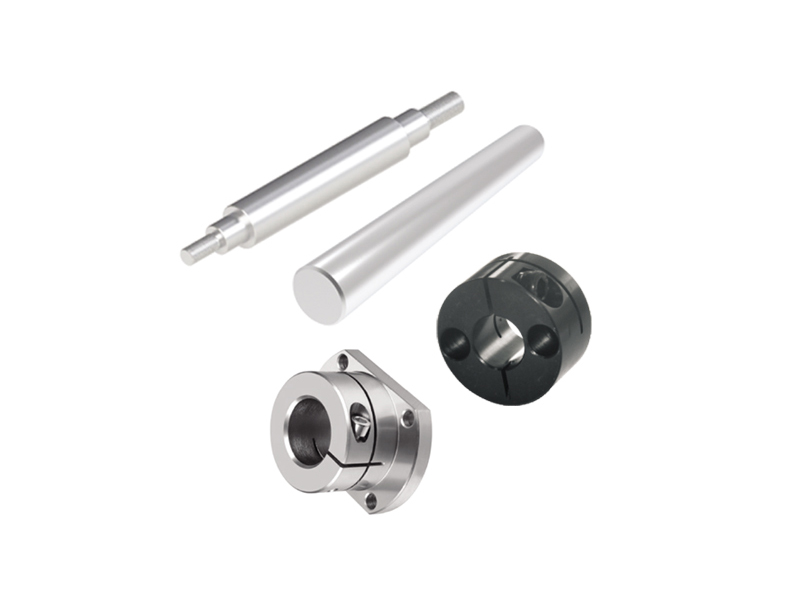

1. Profundidad de la capa enduendueficaz para el eje de guía templado
2. Tratamiento térmico y tratamiento superficial del eje guía.
A menos que se requiera específicamente para tratamiento térmico de larga duración o tratamiento de superficie, la dureza de tratamiento térmico o tratamiento de superficie de los ejes guía convencionales sólo se refieren a la parte circular exterior marcada con 180 en la figura siguiente. Otras partes (tales como piezas escalonados, roscas internas, roscexternas, rande de llave, agujeros internos, áreas de procesamiento opcionales, etc.) no tienen capa de cromo endu.
3. Prevención de la corrosión e instalación del eje guía
Los productos de los ejes guía se recubren con aceite antióxido antes de salir de fábrica;
Al instalar el eje guía, utilice guantes para evitar el contacto con manchas de agua o sudor. Después de la instalación, se debe aplicar aceite anti-óxido, y el mantenimiento de prevención de la corrosión se debe realizar con frecuencia durante el uso;
Al almacenar e instalar modelos de cromo no duro hechos de materiales SUJ2 o S45C, se debe prestar especial atención a la prevención de la oxid, ya que son propensos a la oxid.
1.Grooved with Snap Ring
Cancel snap ring groove on one end Move the L dimension position to the outside of the snap ring groove
2.Keyed Type Internal Thread on One End
Precision Grade Ordinary Grade Precision Grade
Please note that the hardness of the shaft end processing part (effective thread length + approximately 10mm) may decrease due to the annealing effect of processing. For more details, please refer to the overview of the guide shaft.
Selection: Precision Grade is not applicable for L>300
Change internal thread to fine thread Pitch Fine Thread
When selecting, please change M to MC
M and MC must be of the same size
Applicable to Ordinary Grade only
3.Type with Wrench Slot
Deformation near the through hole may occur due to the annealing effect of processing, causing the outer diameter tolerance to exceed the specified value.
Specify the S dimension according to the usage requirements
Refer to the guide shaft product brochure for the wrench slot size
4.Internal Thread on Both Ends
The two wrench slots are not located on the same plane.
5.External Thread on One End · Type with Chamfer
Thread Chamfer Dimension
For M6, the internal dimension of MC() is Precision Grade
MC: The pitch of this fine thread corresponds to the bearing screw cap
MD: The pitch of this fine thread corresponds to the cylinder
The dimension in () is not applicable to Precision Grade
6.One-end External Thread and One-end Internal Thread with Chamfer Type
Customer Specified
S with * should be specified according to usage requirements
7.One-end Step Type / One-end Step Internal Thread Type
One-end Step Type / One-end Step Internal Thread Type
One-end Step and One-end Internal Thread Type · One-end Step and Two-end Internal Thread Type
Optional processing may reduce the hardness of the product
One-end Step and One-end External Thread Type
One-end Step Internal Thread and One-end External Thread Type
Change external thread to fine thread
One-end Step External Thread Type
One-end Step External Thread and One-end Internal Thread Type
Chamfer Dimension for Coarse Thread
Chamfer Dimension for Fine Thread
Two-end Step Type · Two-end Step Internal Thread Type
Two-end Step External Thread Type
One-end Cone and One-end Internal Thread Type · One-end Cone and One-end Step Internal Thread Type
One-end Cone and One-end External Thread Type
Uniform Diameter Type
Ordinary Grade/Precision Grade One-end External Thread Type
Type with Through Hole
One-end External Thread and One-end Internal Thread Type
